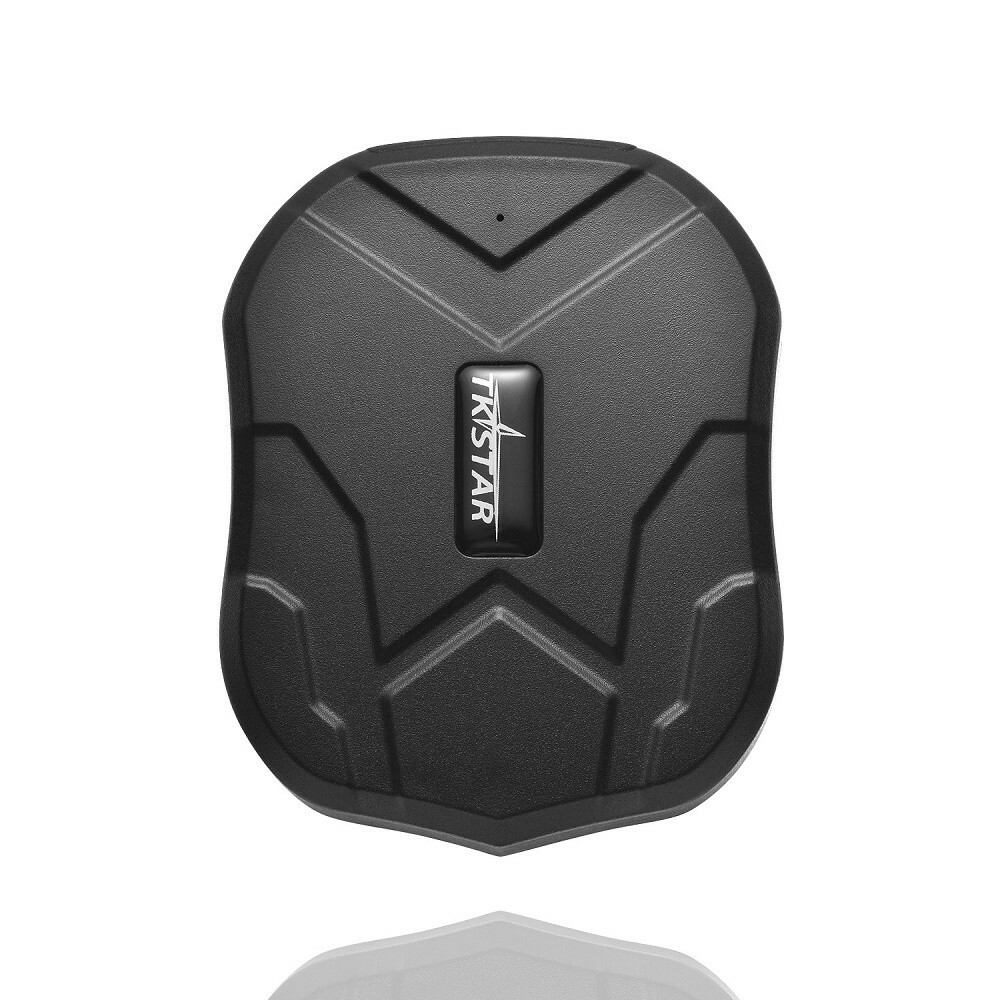

TKSTAR TK905 5000mAh 90 Days Standby Vehicle Tracker GPS Locator Waterproof Magnet Voice Monitor Free Web APP

TK905 Magnet 5000Mah 2G GPS Tracker

Built-in 5pcs Powerful Magnets

Allowing for flexible mounting on vehicles or assets.

Built-in 3.7V 5000mAh Li-ion Battery

Long Standby up to 60 days. 7-10 days working time. Depend on the working mode and locating interval time you set. Do not need to charge every day. When the battery less than 10%, It will send SMS notifications to master contacts.

Waterproof IP65

Waterproof material added dense design and deeply waterproof and dust-proof, it could prevent rain and dirt. It also prevent any bad environment. It is suitable for outdoor use.

Shock Alarm

After you did the shake alarm setting, please keep the tracker being stationary for 5 minutes, then this function will start working. It will send SMS “sensor alarm” to the admin number when the unit get shocked.

Real-time Tracking

You can real-time track the target on google maps easily, anywhere, anytime.

GPS+LBS Dual Positioning Ways

No worry about inside tracking or GPS signal blind area tracking.

History Route Playback

The tracker can help you to record the history route of your car,6 months support at most.

Voice Monitor

You can remotely monitor the voice around the device, everything is under your eyes.

(Send SMS Command: monitor123456)

Geo-fence

You can set up a safety virtual zone, if your target go out or enter in this area, this tracker will send alarm information to you.

Sleep modes

It can help you save battery consumption

Sleep by time: Example: if the time configured time interval in 5 minutes, then the tracker will work for 5 minutes after being waked up, and then back to sleep mode. SMS command, calling tracker can wake up the tracker.

Sleep by shock: if no shock within 5 minutes, then the tracker will enter into sleep mode, it can be wake up by shock, SMS command, calling.

If you want to close the sleep mode, please send SMS command： sleep123456 off

Admin account

If you are a customer who needs to manage many vehicles at the same time, don't worry, I can help you create an administrator account, you can manage multiple devices at the same time.

Lifetime Free Web tracking platform :

Web tracking platform: www.mytkstar.net, Select " Log in by IMEI " on the bottom of screen

IMEI No.: on the back side of cover
Default password: 123456

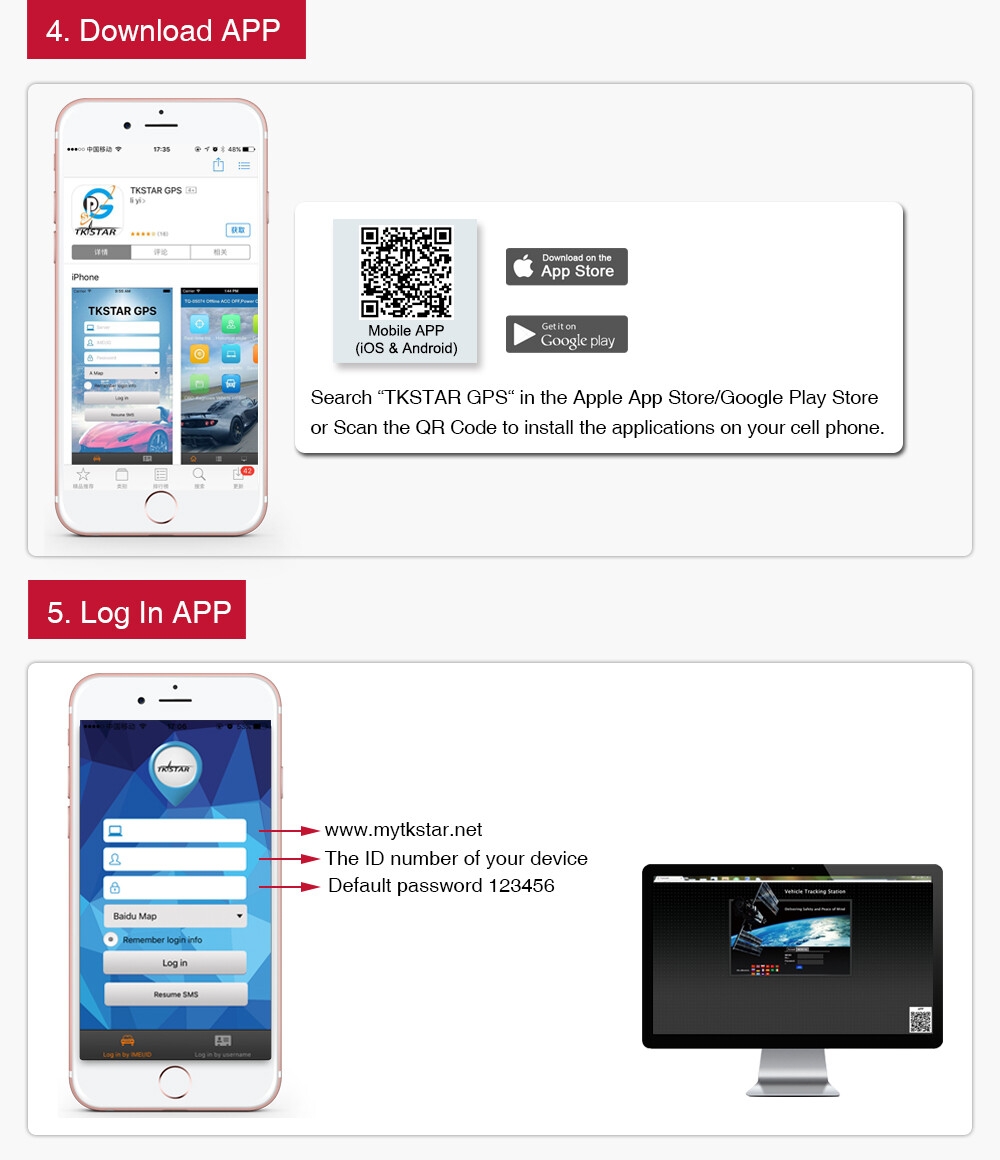

Lifetime Free APP Tracking:

Search "TKSTAR GPS" in the Appl e App Store/Google Play Store or Scan the QR Code to install the applications on your cell phone.

Lifetime Free Tracking Platform

www.mytkstar.net

Overview:

This Waterproof GPS Tracker TKSTAR TK905 is a 2G GSM GPS Tracker which is working based on the existing 2G GSM/GPRS network and GPS satellites, it can locate and monitor any targets remotely by SMS, mobile APP and web tracking software without any limit on the tracking distance! It adopts the most advanced technology of GPS and LBS dual positioning. Besides, with built-in powerful magnet, it can be installed very easily and tightly on car, truck and any target with metal interface.

Besides, this vehicle tracker TK905 is a full featured GPS tracker which is designed for a wide variety of vehicle tracking applications. It is supported by the optional hard-wired car charger which for gain continuous external power. Its built-in GPS receiver has superior sensitivity and fast time to first fix. Its quad band GPRS/GSM subsystem supports 850/900/1800/1900 MHz allowing the TK105A's location to be monitored in real time or periodically tracked by a backend server and mobile devices around the worldwide! System integration is straightforward as complete documentation is provided for GPRS communication protocol. The GPRS communication protocol supports a wide variety of reports including emergency, geo-fence boundary crossings, low battery, shock alarm and scheduled GPS position.

Specification:

* Dim: 90mm * 72mm * 22mm (3.54" * 2.83" * 0.87")
* Weight: 168g
* Network: 2G GSM/GPRS
* Band: 850/900/1800/1900Mhz
* GPS chipset: u-blox UBX-G7020
* GPS sensitivity: -159dBm
* GPS accuracy: 5m
* Wall charger: 110-220V input 5V-1A output
* Battery: Chargeable 3.7V 5000mAh Li-ion battery
* Standby time: 90days
* Storage Temp.: -40°C to +85°C
* Operation Temp.: -20°C to +55°C
* Humidity: 5%--95% non-condensing

Main Functions:

1. GPS+LBS Dual Positioning Ways: If the gps signal is good, the device will locate via gps satellite, if not, the device will locate via LBS! Under GPS locating mode, the accuracy is 5-10 meters, under LBS locating mode, the accuracy is 100-1000 meters!

2. Realtime Tracking: You will can realtime track the device on google maps via mobilephone, tablet and computer, and the minumum data upload interval is 10 seconds!

3. History Route Playback: The APP and web server can record the upload data of the device up to 6 months, you will can playback the history route at any time!

4. Long Standby Time: It has built-in 3.7V 5000mAh Li-ion battery, can standby up to 90 days.

5. Powerful Magnetic: It has 5pcs built-in magnets,with super strong powerful magnetic,can be very easily installed.

6. Waterproof IP65: The waterproof level of this device is IP65, it can resist splash water but can't be put under water!

7. Remotely Voice Monitor: Send "Monitor+Password" to the device first, then the device will turn into monitor mode,
now if you make call to the SIM number in the device, it will pick up your call automatically and you will monitor the voice around the device!

8. Overspeed Alarm: This alarm works only under continuous positioning mode.When the unit speed is exceeding the speed you presetted, it will send message “speed alarm!” to the admin number every 5 minutes.

9. Shock/Vibration Alarm: After you did the shake alarm setting, please keep the tracker being stationary for 5 minutes, then this function will start working. It will send SMS “sensor alarm!” to the admin number when the unit get shocked.

10. Movement Alarm: When the units stay immobile in a place for 10 minutes, the user can set up the movement alarm by this command "overpassed", then in case the device moved 500m it will send alarm SMS "Move Alarm+Latitude and longitude" to the authorized number.

11. Geo-fence: Set up a geofence for the tracker to restrict its movements within a district. The unit will send alarm information to APP and web server when it goes out of or get in this district.

12. Sleep Mode for Saving Battery:
* Sleep by time mode: After did this setting, tracker will only work for 5 minutes after being waked up, and back to sleep mode, GPS will shut off and GSM will work in low consumption mode. SMS, call will can wake up the tracker.
* Sleep by shock sensor mode: After did this setting, if no shock for 5 minutes, the tracker will work under "sleep by shock" mode, GPS will shut off, GSM will work in low consumption. Vibration, SMS, call will can wake up the tracker.

13. GPS Data Saving: once the device lost GSM and GPRS signal, the GPS data will be saved in its built-in memory, 200pcs data can be saved at the most.

14. Web Tracking Platform and Mobile APP: LIFETIME FREE! Web server and both iOS and Android version APP are available!

Important Notice:

* This device just can work with 2G GSM network, and this item will not include Sim Card, please buy it from your local.
* Please make sure the GSM SIM card supports making calls, sending messages, GPRS network
* Please make sure the GSM SIM card has sufficient balance.
* Please make sure the GSM card has opened the call ID display function and turned off the call transfer.
* Please insert the GSM SIM card into the device correctly.

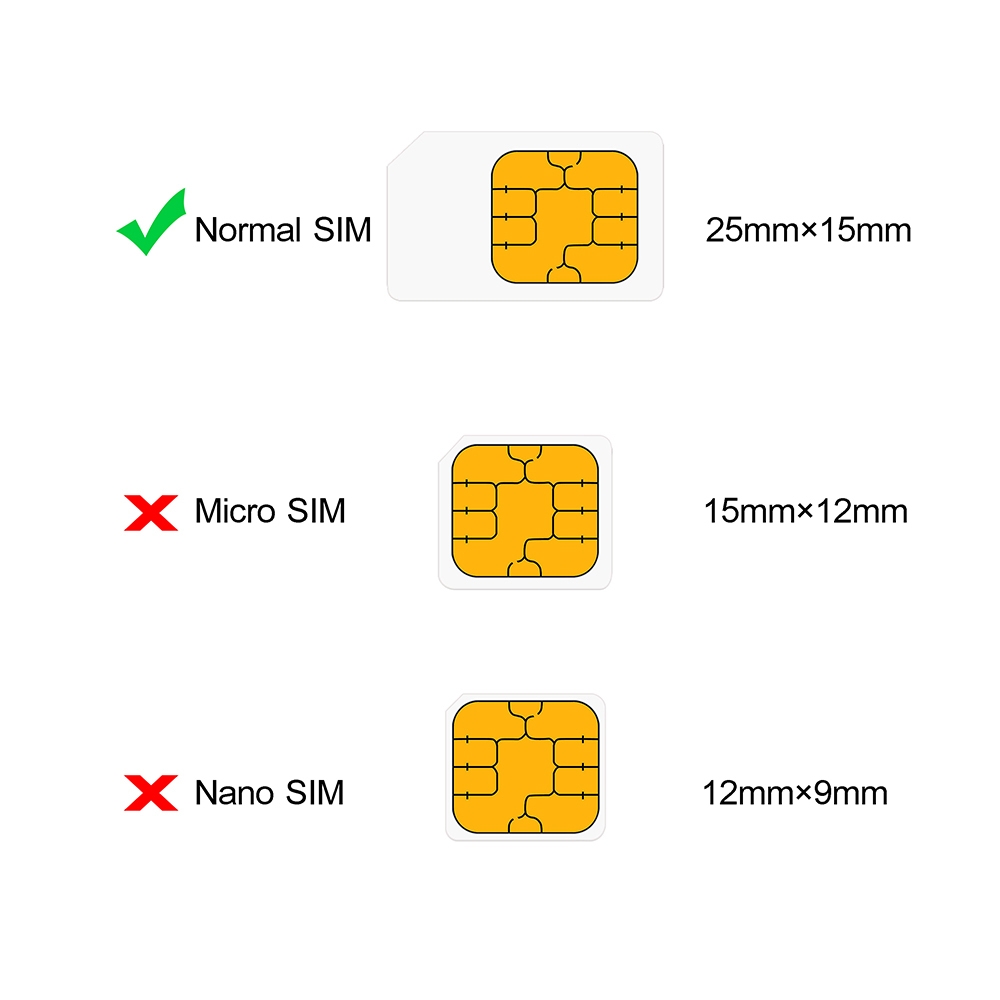

* Please use the normal SIM card for the tracker, not Micro SIM or Nano SIM.

Packing List

1 * TK905 Main Unit
1 * Waterproof Bag
1 * USB Charging Cable
1 * Micro Sim Adapter
1 * Nano Sim Adapter
1 * User Manual
1 * Original Box (Optional)
1 * Car Charger (Optional)

(No Sim Card and SD Card included)
