Auto GPS Car Tracker Locator Vehicle Tracking Device GPS-303

This tracker is a new product based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. It can track and monitor remote target by SMS or internet.

Vehicle GPS tracker with built-in GPS/GSM antennas ,Anti-theft GPS car tracker.



2. Features

Built-in GSM, GPS antenna, Waterproof ,compact, elegant appearance.

Support GPS and LBS (Location based service) double tracking solutions.

Support SMS/GPRS/Internet Network data transmission.

Support configure the settings remotely.

Set multiple functions of security, tracking, monitoring surveillance, emergency alarms and management in its entirety.



3. Main Function Description

1.For all models vehicles(12-24V)

2.Location based service(LBS) + GPS double tracking solution
3.GPS blind spot alert
4.multi power-saving mode :
Sleep by time / shock sensor
deep sleep
awake at specific time
5.Save GPRS traffic mode(Money save mode)
6.Anti-theft gsm alarms:
Movement alarm
Geo-fence alarm
Over speed alarm
ext.power off alarm
low battery alarm
7.Alarms under ARM State:  ACC/Shock alarms
8.Remotey shutdown engine
9.Support MiroSD
10.Built-in memory for 16,000 positions
11.Built-in 350 mA polymer battery
12.SMS tracking on cell phone with google map link
13.Absolute street address by SMS
14.Web server, free PC tracking soft, Mobile phone APP



Application:For vehicles,cars,motorcycle,fleet management.





4.Specification:



Content	Specification
DIM	9.6x5.3x1.6cm
Weight	70g
Network	GSM/GPRS
Band	850/900/1800/1900Mhz
GPS sensitivity	-159dBm
GPS accuracy	5M
GPS start time	Cold status  45s Warm status  35s  Hot status  1s
Car power supply	12 V - 24 V
Back up battery	Chargeable 3.7V 350mAh Li-ion battery
Storage Temp	-40°C to +85°C
Operation Temp	-20°C to +65°C
Humidity	5%--95% non-condensing

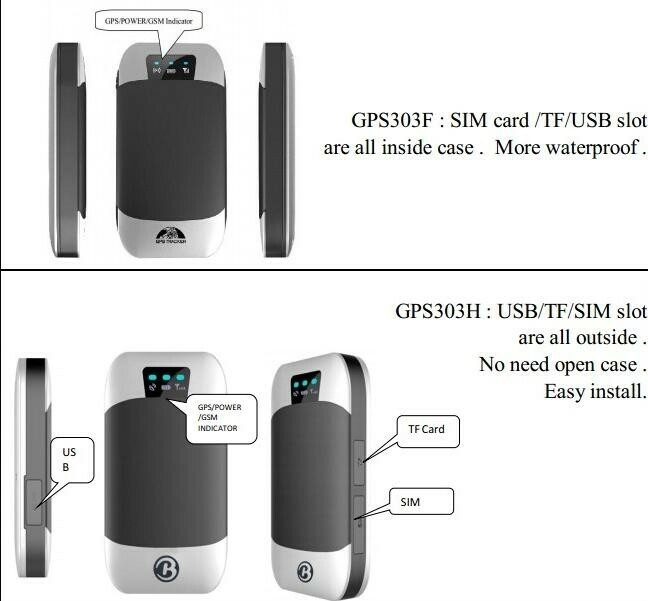

5.Hardware Description

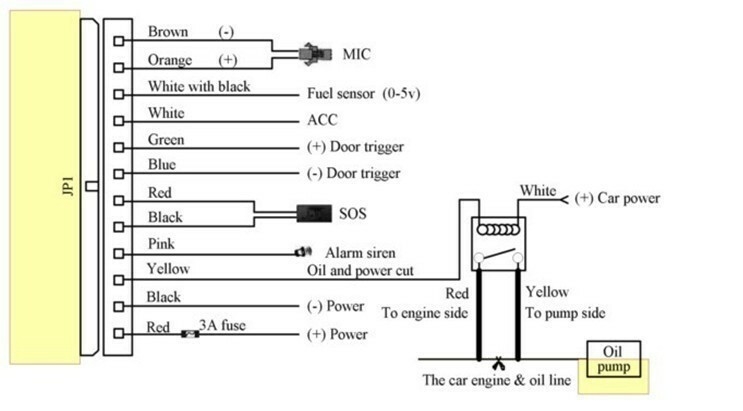

Wiring Diagram of gps tracker 303H:

Find the 12 PIN harness and insert it into the corresponding holes of the products, and connect the wires with the car circuit showing below:



  Package Content of gps tracker 303H:

1pc * GPS Main Unit GPS303H

1pc * 12Pin harness 1pc * Screwdriver 1pc * User manual                                                       1PC* External microphone               1PC* relays
